LinknLink RD1100+ Zigbee 3.0 USB Dongle

LinknLink RD1100+ Zigbee 3.0 USB Dongle

$16.90 USD
$19.90 USD $16.90 USD
Sale Sold out
Shipping calculated at checkout.
LinknLink shipping information for RD1100+ orders

Orders are typically dispatched within 1–3 business days. Delivery time and shipping method vary by destination and service. Shipping details are confirmed at checkout.

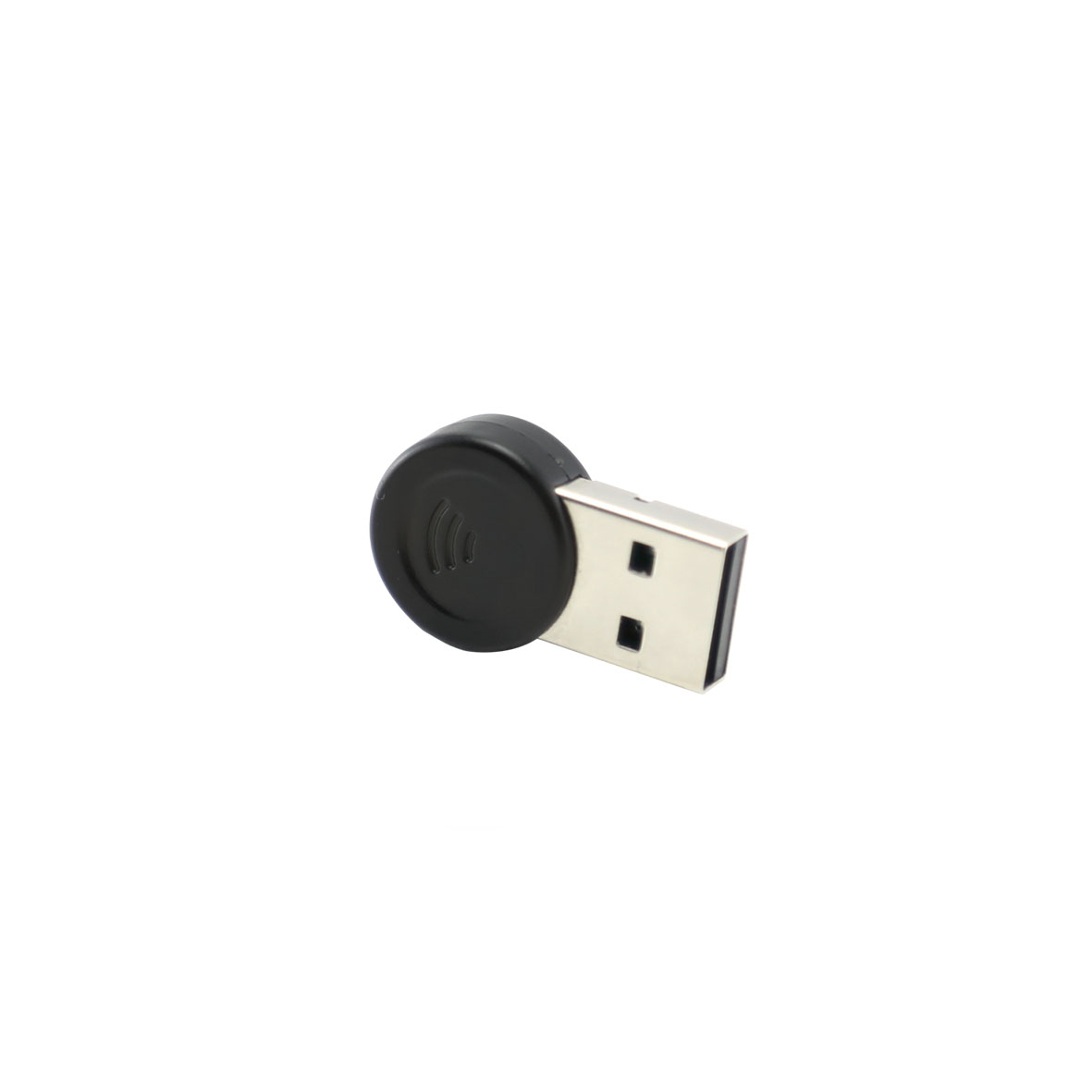

LinknLink RD1100+ is a compact Zigbee 3.0 USB dongle for Home Assistant with a Silicon Labs EFR32MG13 radio and USB-A 2.0 interface.

View full details

LinknLink RD1100+ is a compact Zigbee 3.0 USB dongle for Home Assistant. It uses a Silicon Labs EFR32MG13 Zigbee radio and a standard USB-A 2.0 interface to connect Zigbee devices without occupying unnecessary space around your gateway.

Local Zigbee control for Home Assistant

Use RD1100+ as the Zigbee coordinator for local smart-home automations with ZHA (Zigbee Home Automation). For Zigbee2MQTT, verify the installed firmware and current coordinator support before deployment.

How to set up RD1100+

  1. Connect the dongle: Insert RD1100+ into an available USB-A port on your Home Assistant gateway.
  2. Add ZHA: In Home Assistant, open Settings > Devices & Services > Add Integration, then search for ZHA.
  3. Select the detected adapter: Choose the serial device detected by Home Assistant. The device path can vary by host and installation; do not assume a fixed path.
  4. Create the Zigbee network: Follow the ZHA prompts to create the network, assign a room, and finish setup.
  5. Pair devices: Open Configure > Add Device in ZHA and reset the Zigbee device you want to pair.

Multiple Zigbee devices can be paired through Home Assistant after the coordinator is configured.

Home Assistant ZHA setup screen for LinknLink RD1100+ USB Zigbee dongle

Home Assistant Zigbee device pairing steps with LinknLink RD1100+

Technical specifications

SKURD1100+TX Power-9 ~ +19 dBm
Dimensions28.3x15.9 mmRX Sensitivity-98 ~ -100 dBm
InterfaceUSB-A 2.0Max Data Speed250kbps
Zigbee RadioSilicon Labs EFR32MG13Comm. Range200m (max)
Zigbee ProtocolZigbee 3.0PackagingStatic bag simple packaging
Radio Frequency2400 ~ 2483.5 MHz (16CHs)CertificationsFCC, CE, EAC, ROHS

RD1100+ Zigbee USB Dongle FAQ

What is LinknLink RD1100+?

RD1100+ is a Zigbee 3.0 USB coordinator for connecting Zigbee devices to a Home Assistant installation.

Which Home Assistant integration should I use?

The verified setup path in this guide uses ZHA (Zigbee Home Automation).

How do I connect RD1100+?

Insert it into an available USB-A port, add ZHA from Devices & Services, select the detected serial adapter, and follow the network-creation prompts.

Does RD1100+ work with Zigbee2MQTT?

RD1100+ supports Zigbee2MQTT. Confirm the installed firmware and current coordinator support before deployment; this preview does not guarantee a specific firmware version.

What range can I expect?

The listed communication range is 200m maximum. Actual range depends on walls, interference, placement, and the Zigbee network.

Which chipset and protocol does it use?

RD1100+ uses a Silicon Labs EFR32MG13 radio and Zigbee 3.0 protocol.

Do I need a USB extension?

The compact USB-A form factor is designed to conserve gateway space. A USB extension may still be useful when placement or interference requires more separation.

Can I pair multiple Zigbee devices?

Yes. After ZHA is configured, you can add multiple Zigbee devices through Home Assistant.
