LinknLink ZG-808Z Zigbee 3.0 USB Dongle
LinknLink ZG-808Z Zigbee 3.0 USB Dongle
Couldn't load pickup availability

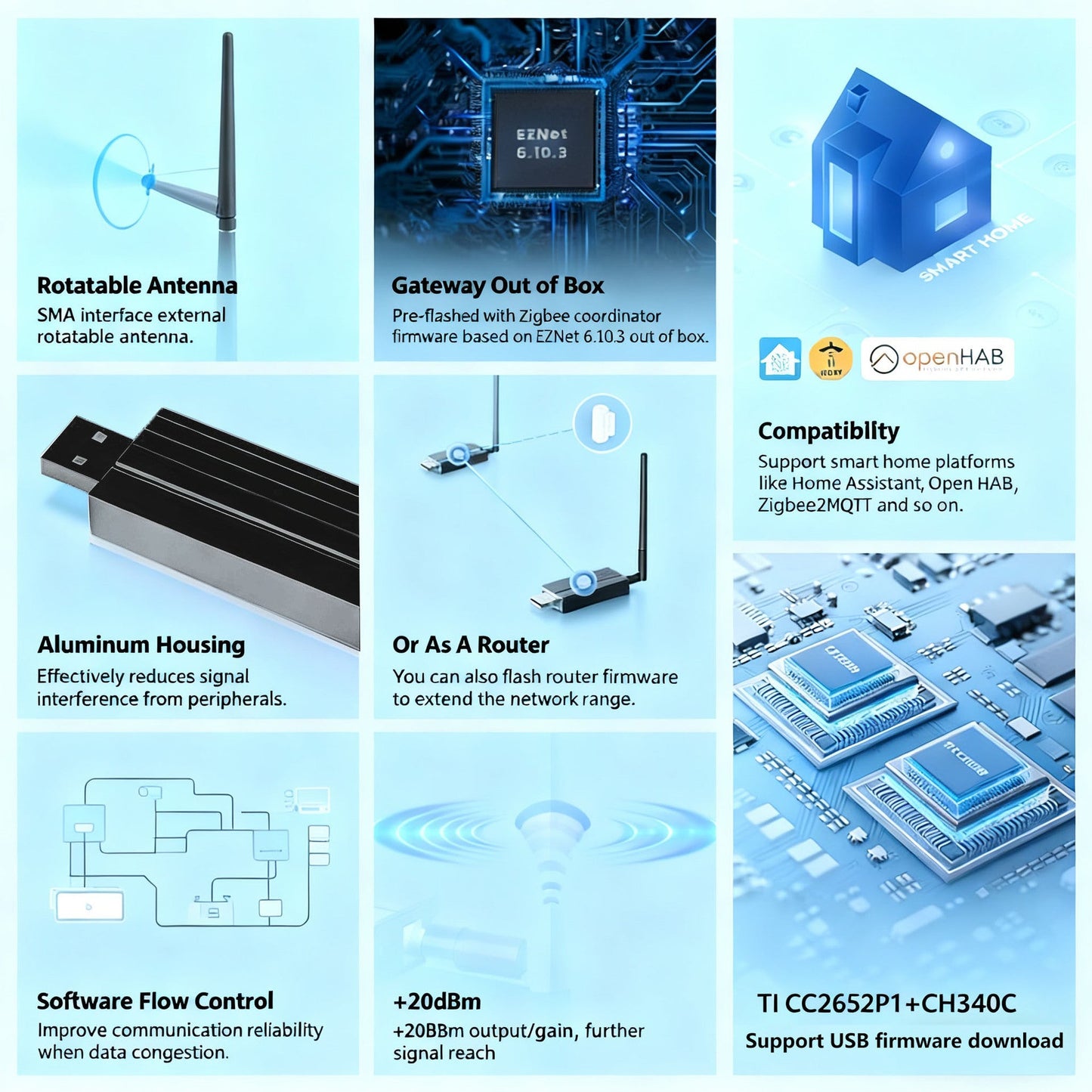

The LinknLink ZG-808Z Zigbee 3.0 USB Dongle is a powerful device designed to provide seamless Zigbee 3.0 connectivity for Home Assistant users. Featuring a standard USB-A interface, it integrates a high-performance TI CC2652P1 radio, ensuring reliable communication across a wide range of Zigbee-based smart home products. Its compact design conserves USB port space on your Home Assistant gateway, eliminating the need for additional USB extensions.
|
SKU No. |
ZG-808Z |
Max Distance |
450m (LOS) |
|
Dimensions |
72.2x24.23x10.95 mm |
Max Radio Power |
20 dBm |
|
Interface |
USB-A 2.0 (CH340C) |
Max Data Speed |
250kbps |
|
Zigbee Radio |
TI CC2652P1 |
Max Connections |
128 |
|
Zigbee Protocol |
Zigbee 3.0 |
Packaging |
Carton Box |
|
Radio Frequency |
2400 ~ 2480 MHz |
Certifications |
FCC, CE, EAC, ROHS |
ZG-808Z Zigbee 3.0 USB Dongle FAQ
Does the ZG-808Z Zigbee 3.0 USB Dongle work with Home Assistant?
Yes. The ZG-808Z is designed for Home Assistant users who need a Zigbee 3.0 coordinator through a USB-A connection. After setup, it can help Home Assistant communicate with compatible Zigbee devices.
Which Zigbee chip does the ZG-808Z use?
The ZG-808Z uses a TI CC2652P1 radio, a widely used Zigbee coordinator platform for local smart home networks.
Can I use the ZG-808Z with Zigbee2MQTT?
The dongle is suitable for Home Assistant Zigbee workflows, including setups that use Zigbee2MQTT when the host system and firmware configuration are prepared correctly.
Do I need a USB extension cable?
The compact USB-A design can plug directly into many gateways. If your gateway is close to Wi-Fi, SSD, or USB 3.0 interference, a short USB extension cable can help place the coordinator in a cleaner radio position.
What kinds of devices can the ZG-808Z connect?
It can coordinate compatible Zigbee 3.0 smart home devices such as sensors, switches, plugs, lights, and other Zigbee accessories supported by your Home Assistant setup.
Is the ZG-808Z cloud dependent?
No. The dongle is intended for local Zigbee communication through your Home Assistant gateway. Your actual automation behavior depends on the software and device integrations you configure.
